NOTE:

1. This sensor cannot be connected to WiFi or Zigbee Hub.

2. But it supports Tuya Bluetooth Hub and Tuya Multi-Mode Gateway.

3. For more technical features, please refer to the "Product technical characteristics" section, at the end.

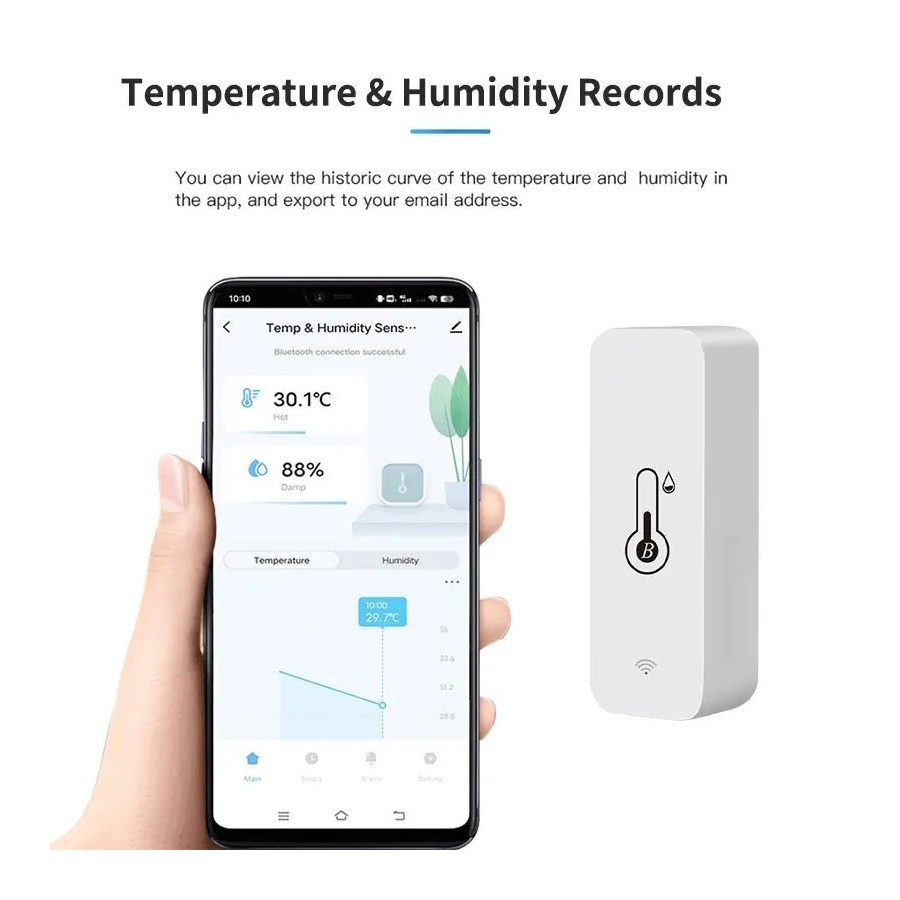

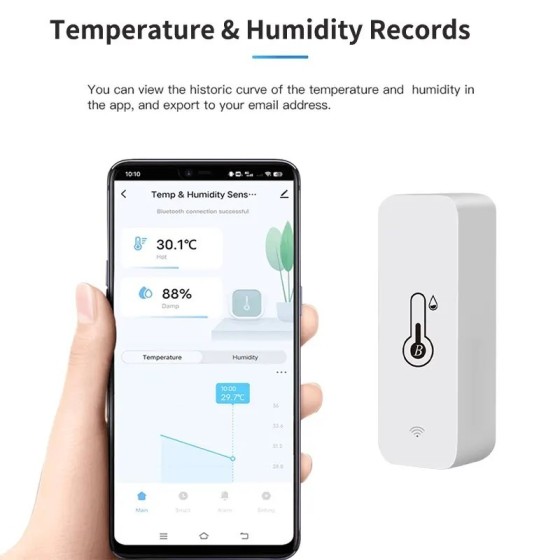

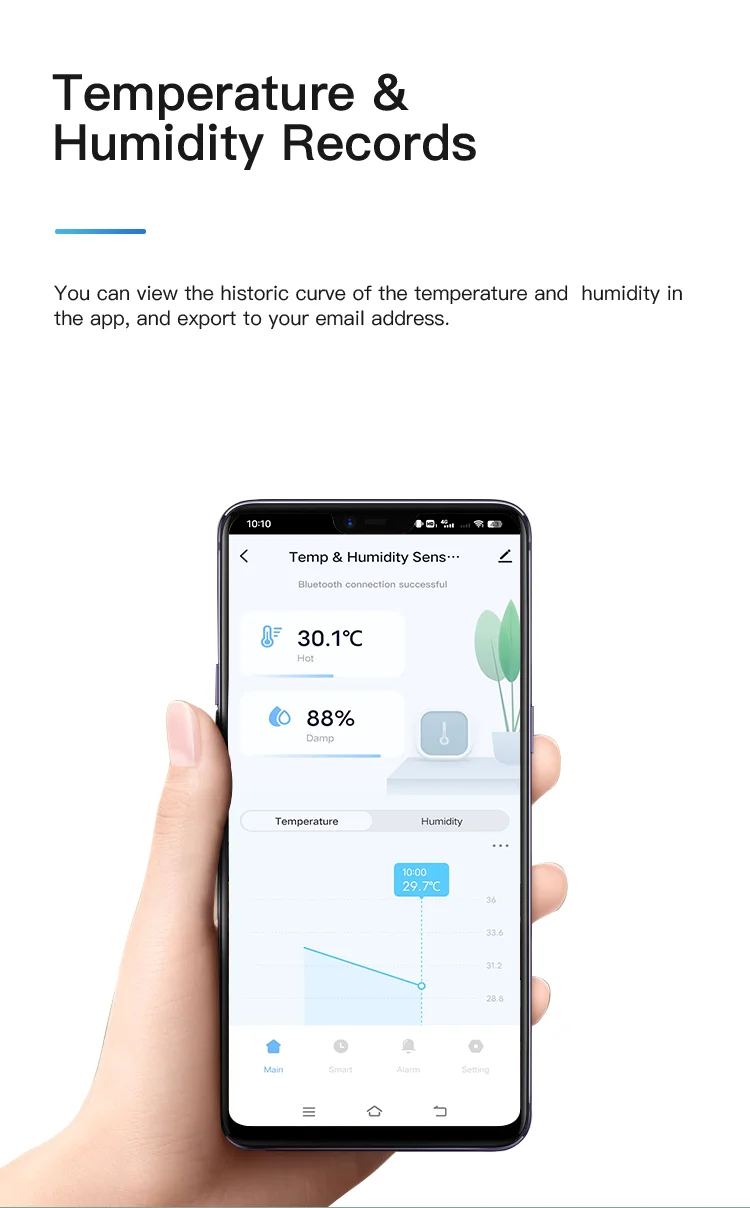

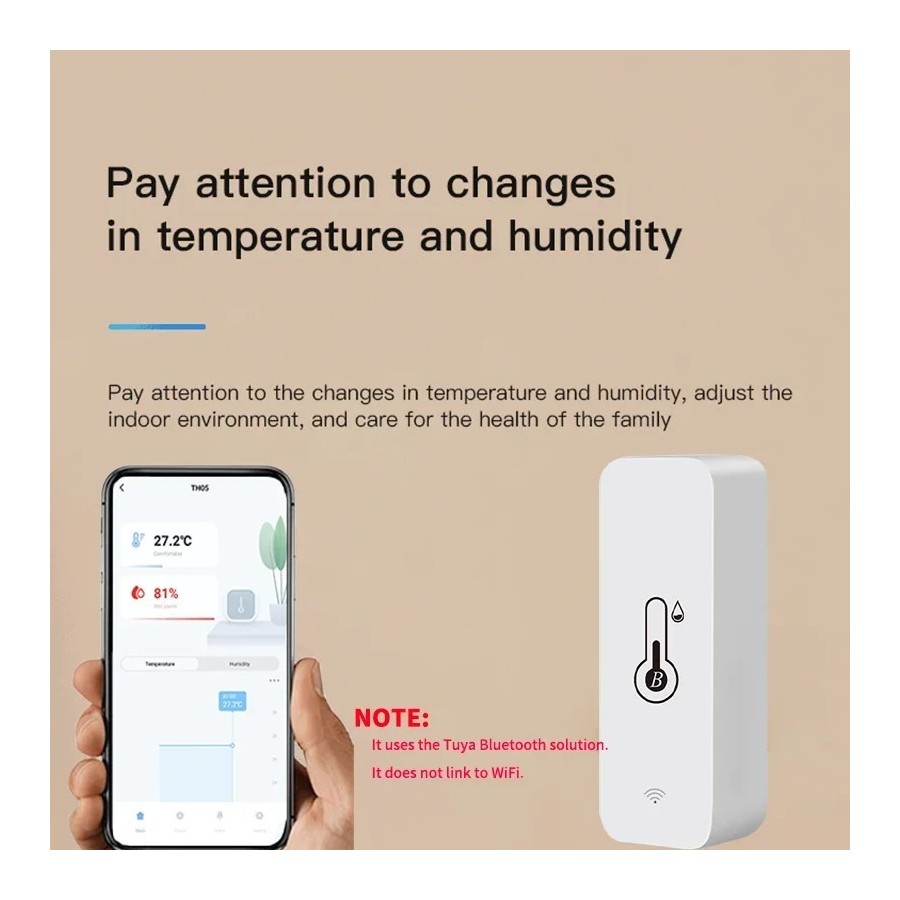

temperature and Humidity Records

You can view the historic curve of the temperature and humidity in the APP, and export to your email.

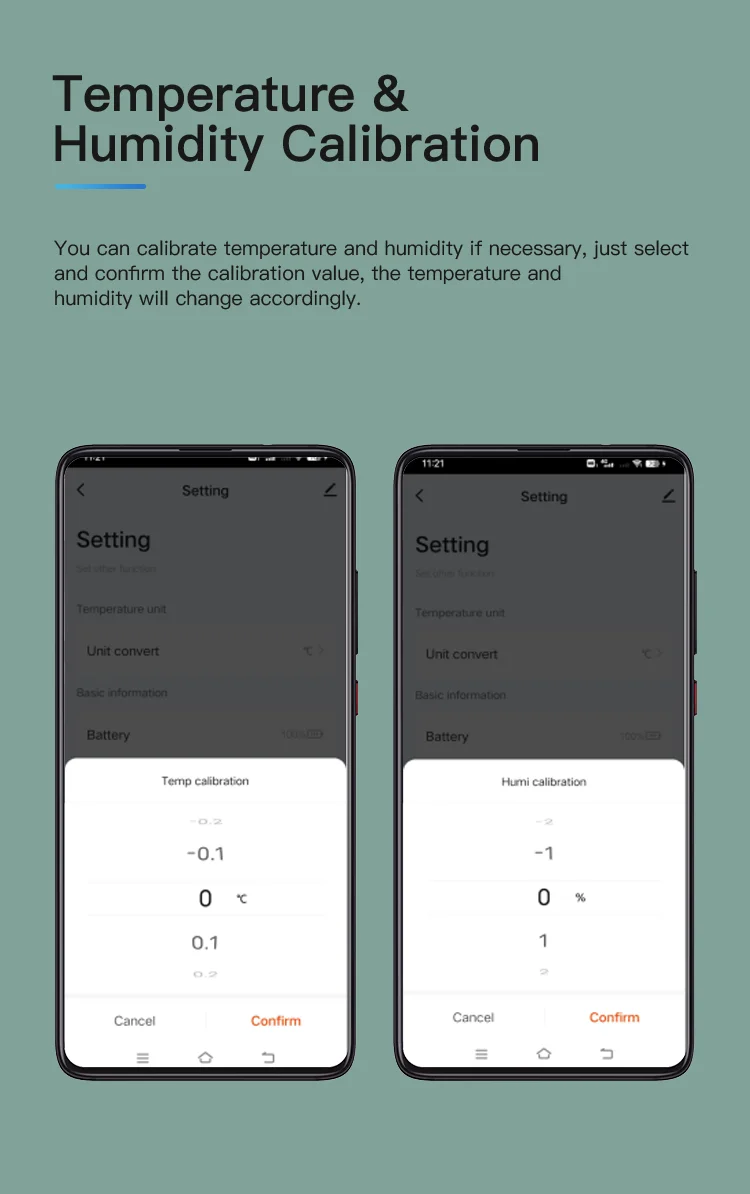

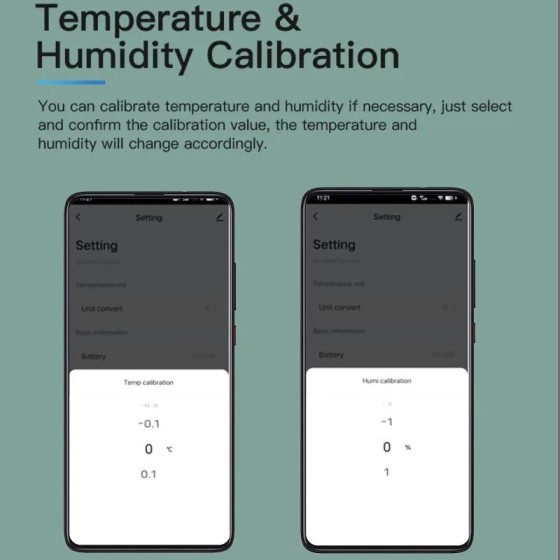

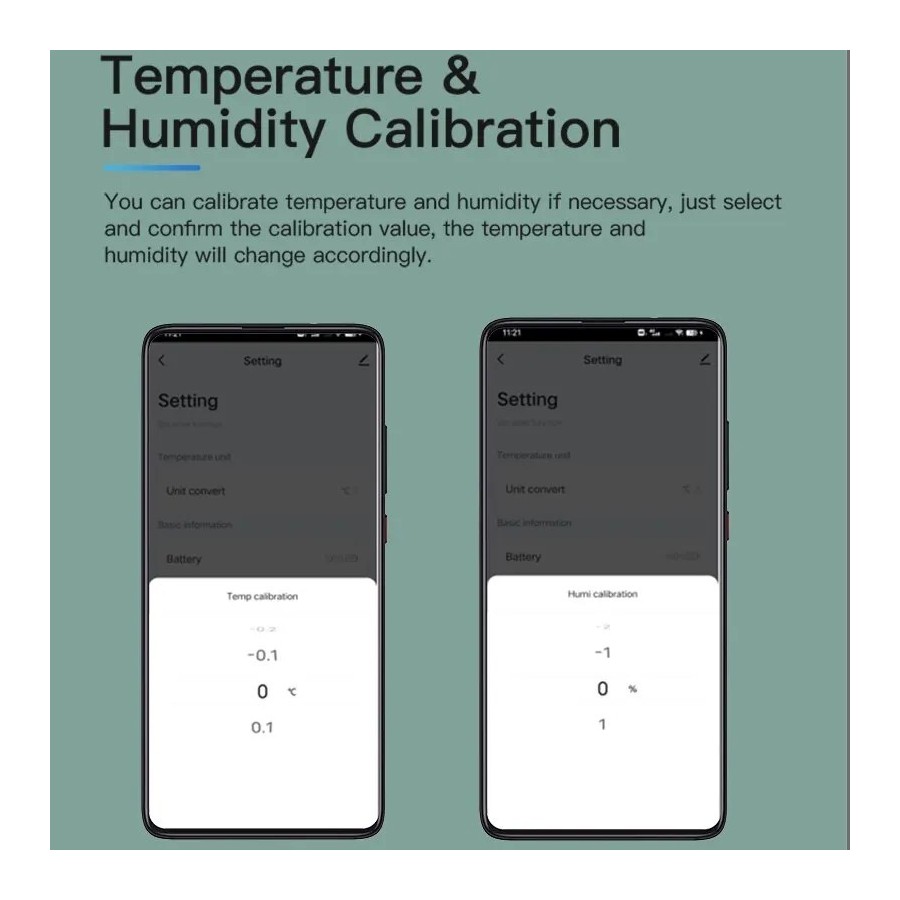

Temperature and humidity calibration

You can calibrate temperature and humidity if necessary, just select and confirm the calibration value, the temperature and humidity will change accordingly.

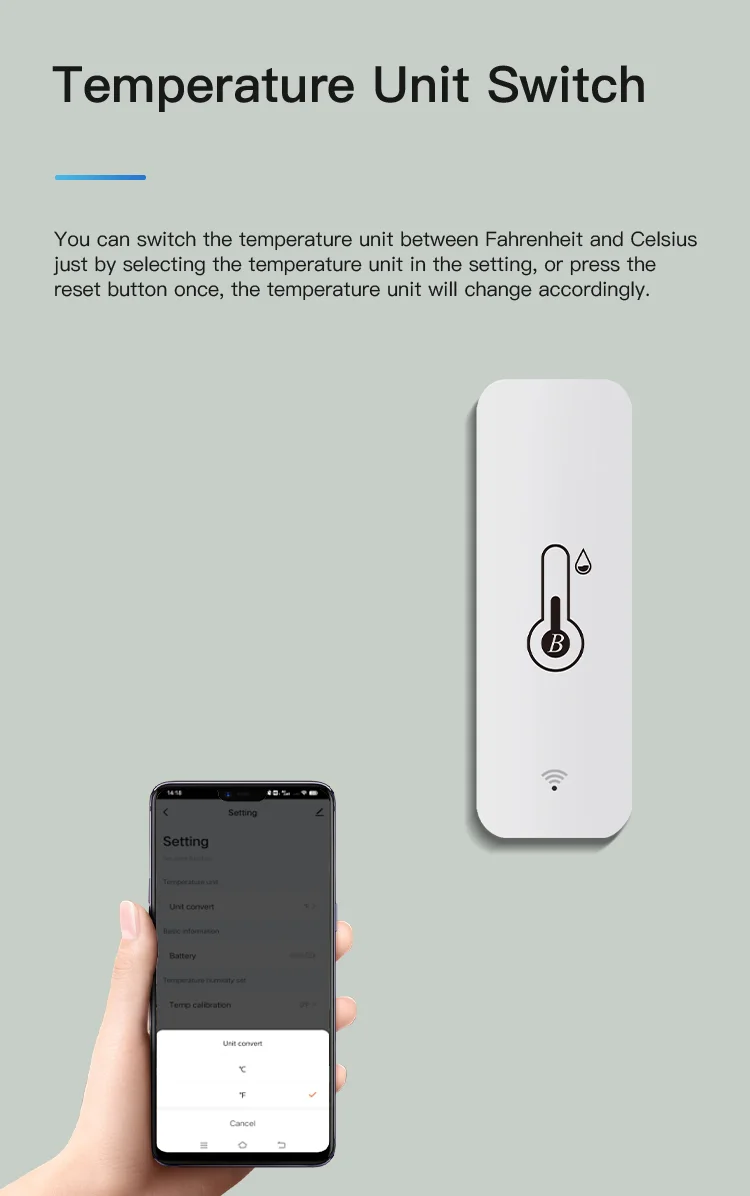

Temperature  Unit Switch.

You can switch the temperature unit between Fahrenheit and Celsius just by selecting the temperature unit in the setting, or press the reset button once , the temperature unit will change accordingly.

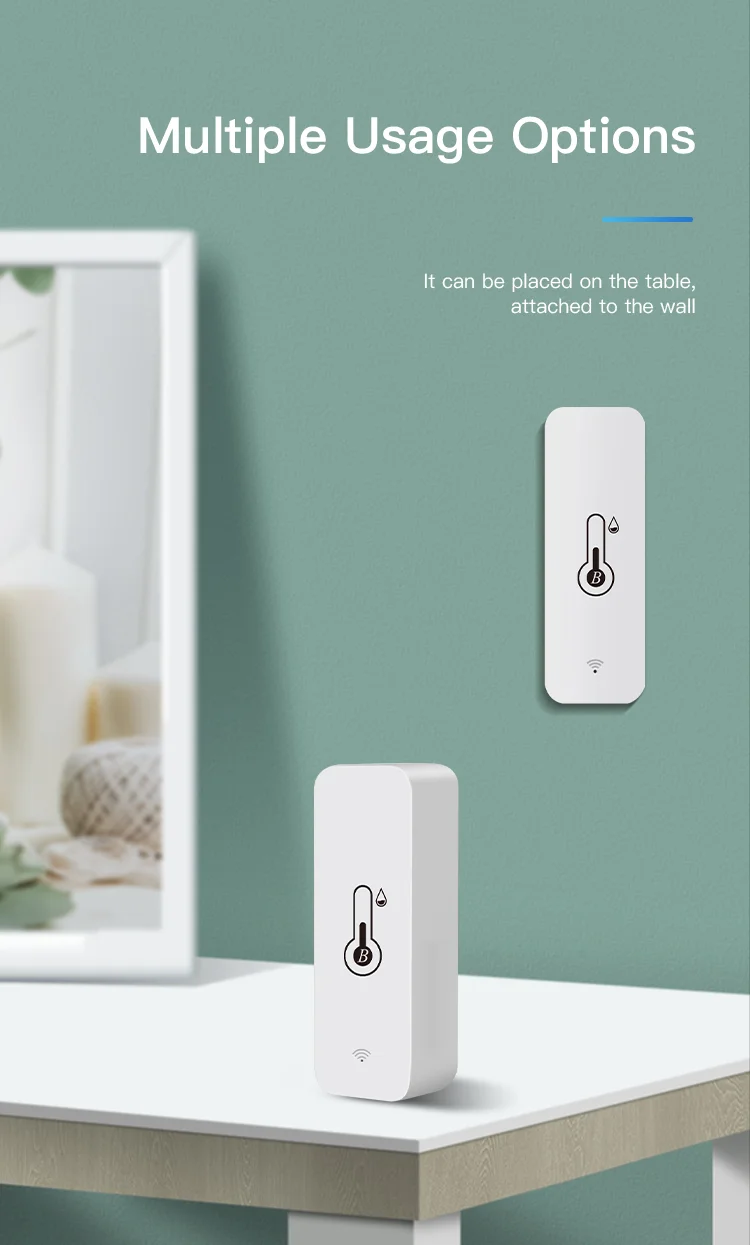

Multiple Usage Options

It Can be placed on the table and attached to the wall.

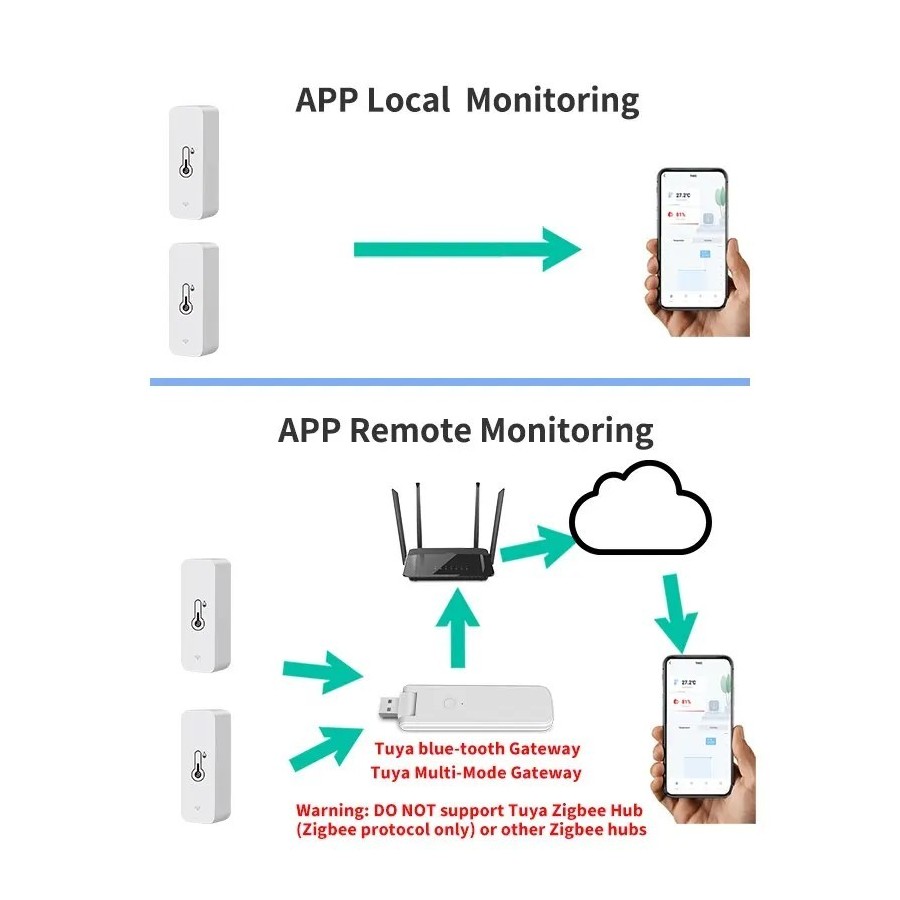

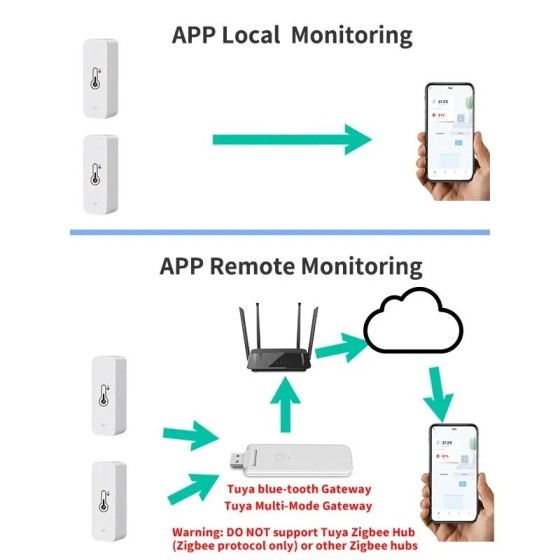

About Rmote Monitor:

To achieve remote monitoring and automatic configuration, our products need Tuya Bluetooth Gateway or Tuya Multi-Mode gateway support.

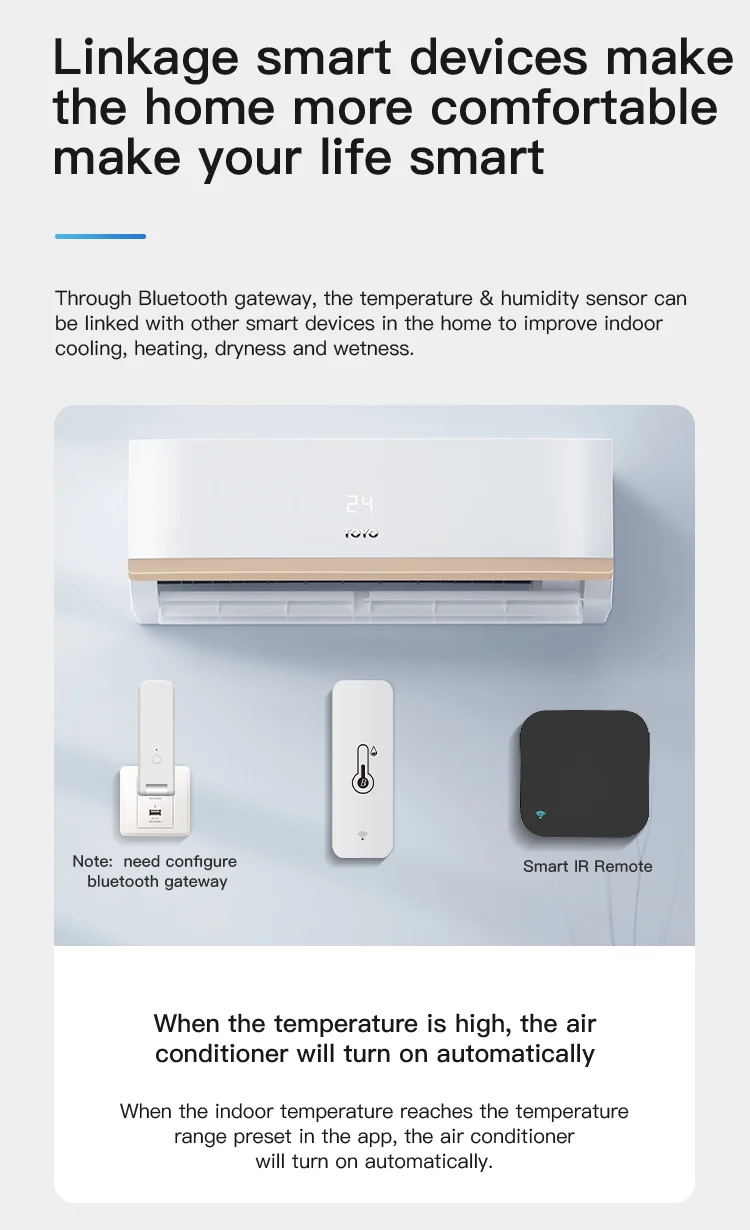

Smart Link

This sensor can serve as a trigger source for other Tuya devices.

You can set changes in temperature or humidity to allow other devices to perform specific actions.

NOTE: Require Tuya Bluetooth Gateway or Tuya Multi-Mode gateway support.

Voice Inquiry

After linking Tuya and Alexa accounts, you can inquire about the current temperature and humidity through voice.

NOTE: Require Tuya Bluetooth Gateway or Tuya Multi-Mode gateway support.

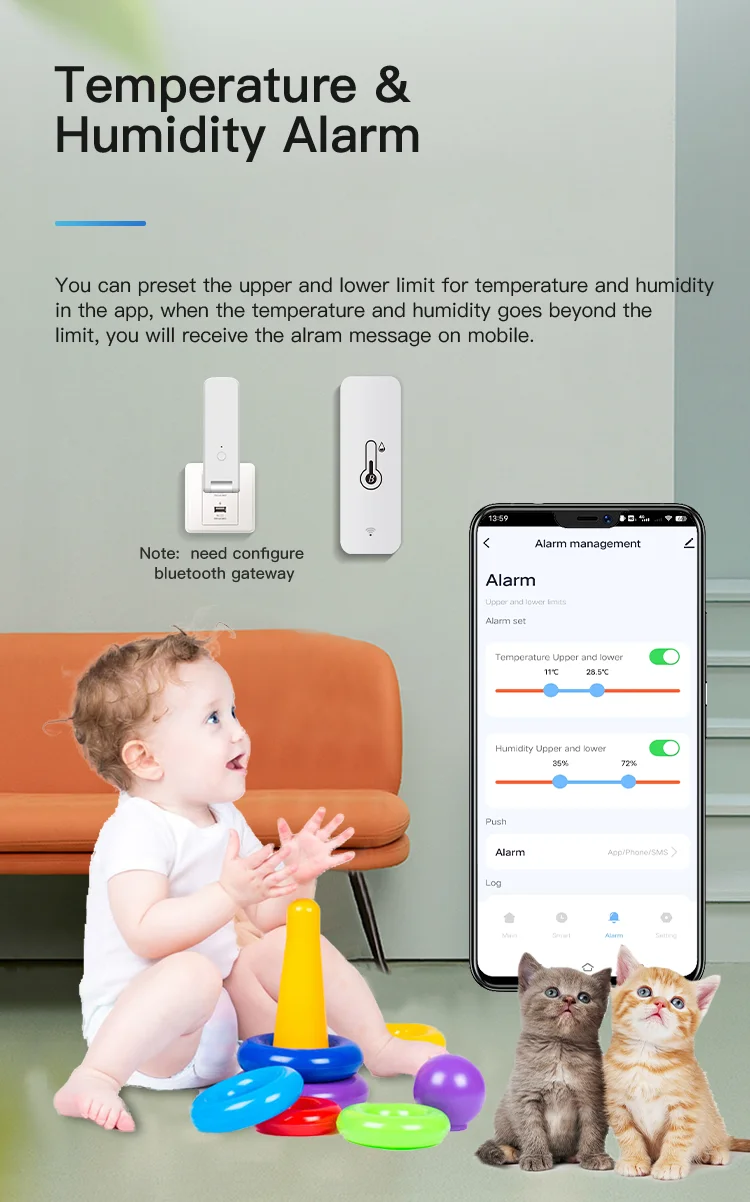

Temperature & Humidity Alarm Setting

You can preset the upper and lower limit for temperature and humidity in the app, when the temperature and humidity goes beyond the limit, you will receive the alarm message on mobile.

NOTE: Require Tuya Bluetooth Gateway or Tuya Multi-Mode gateway support.

Low Power Alarm

When the battery power is low, it will push alarm message via APP, Remind you to change the battery.

NOTE: Require Tuya Bluetooth Gateway or Tuya Multi-Mode gateway support.

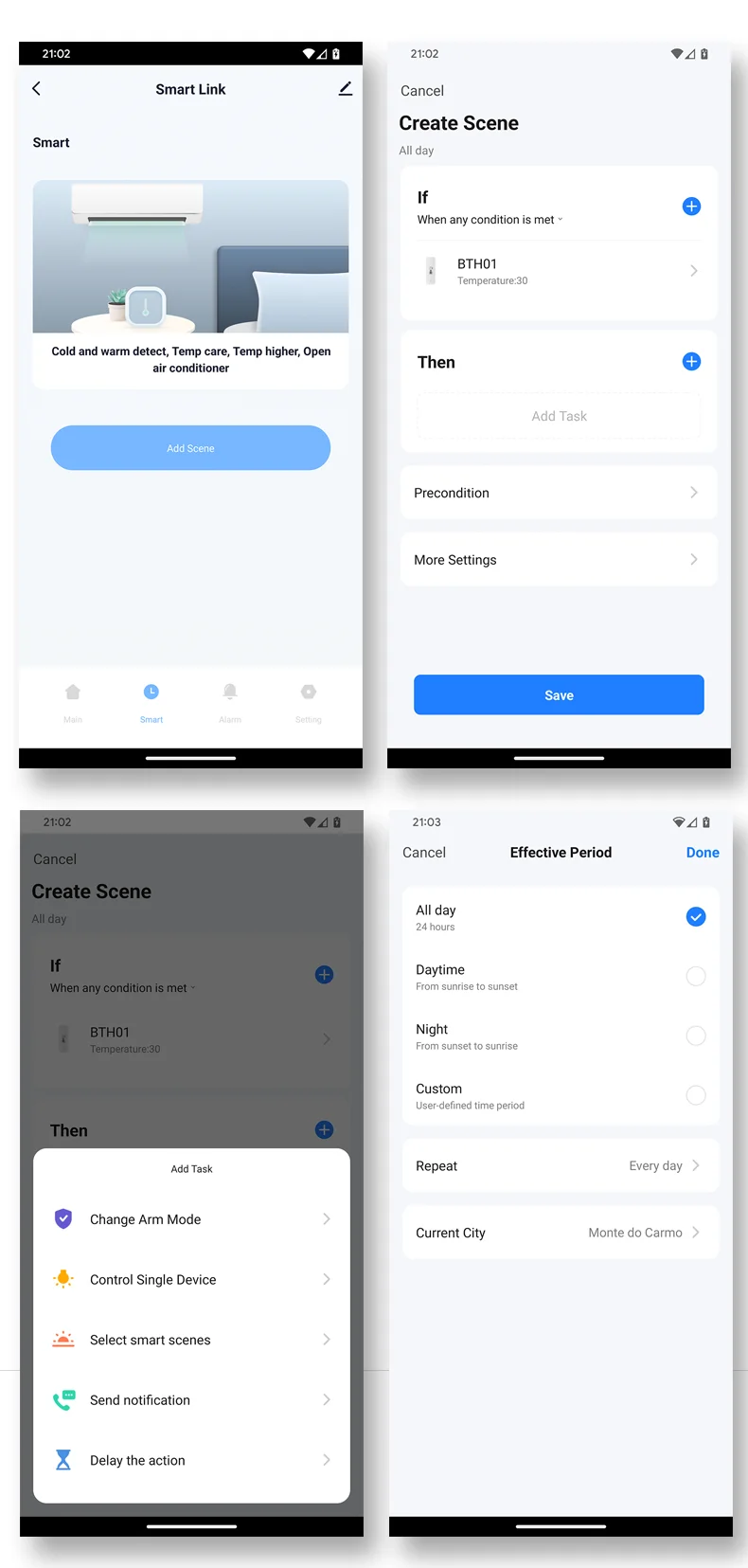

APP Secen Page

NOTE:

Activating this page requires support from Tuya Bluetooth gateway or Tuya multi-mode gateway.

That is to say, the sensor must be connected to the Tuya Bluetooth gateway or Tuya multi-mode gateway.

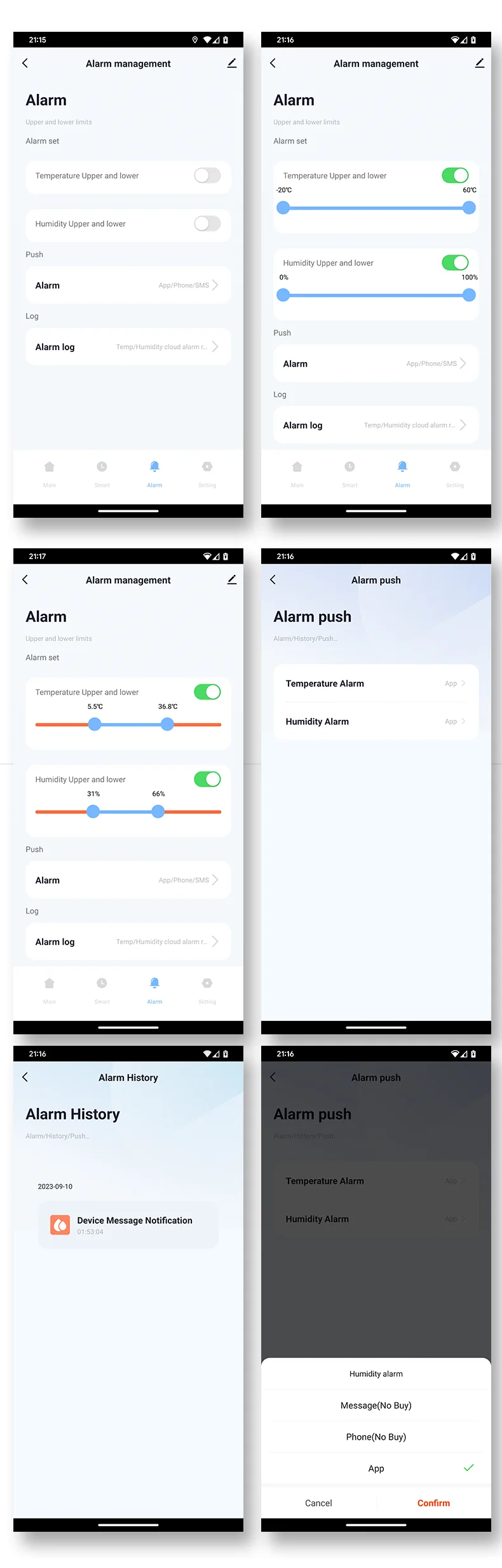

APP Alarm Page

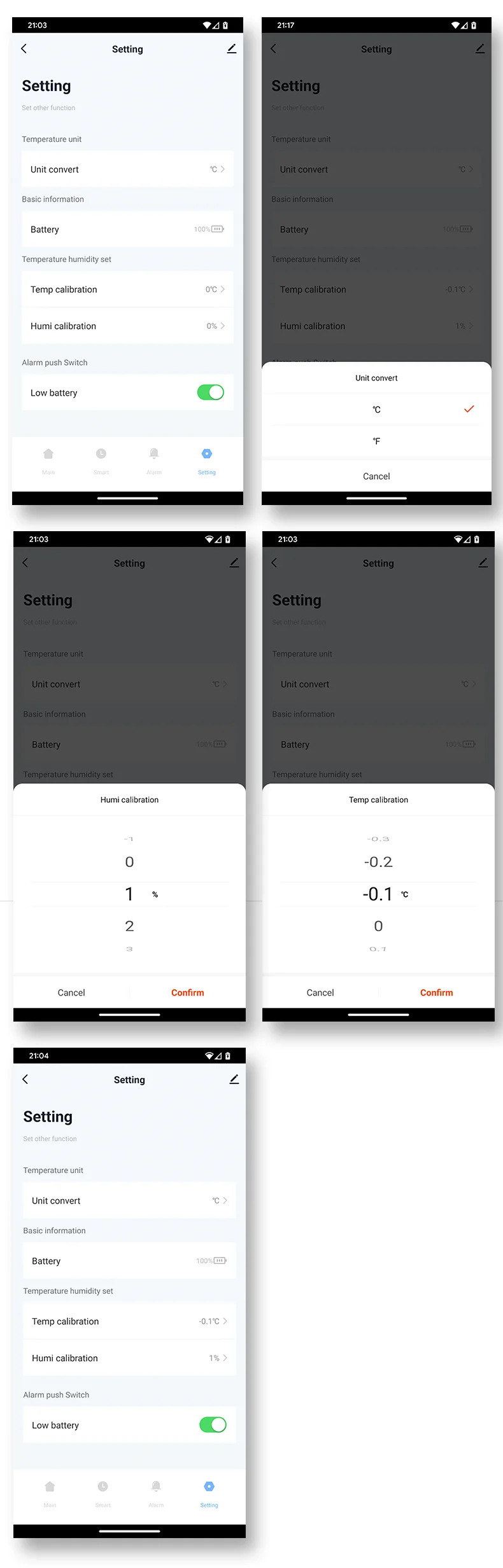

APP Setting Page

Product technical characteristics

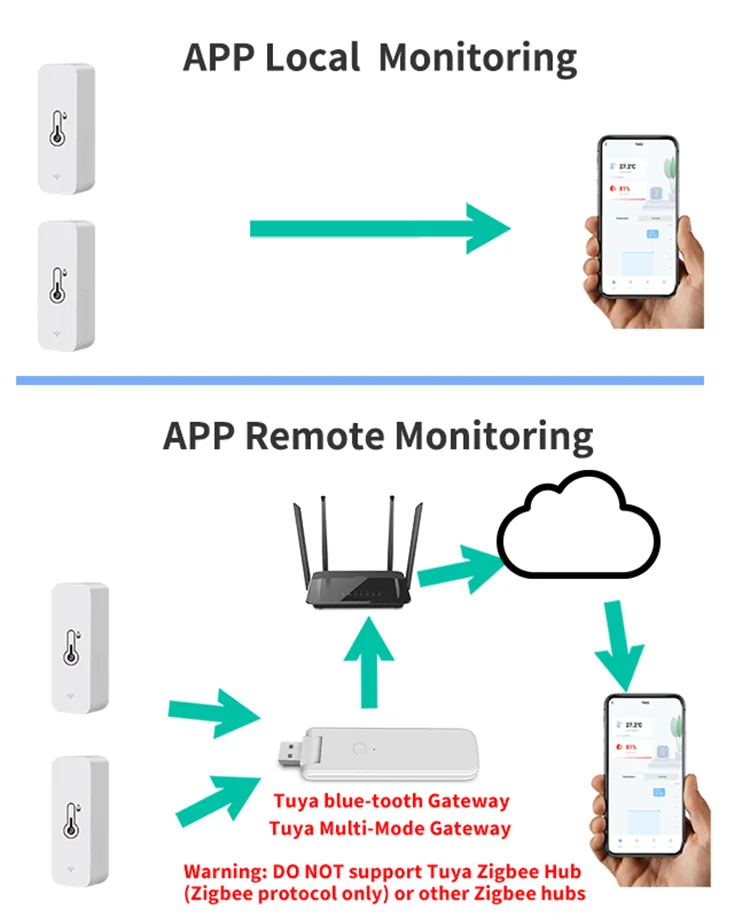

About Remote monitoring:

If you want to remotely monitor temperature and humidity, you must configure the sensor to Tuya Bluetooth Gateway or Tuya Multi-Mode gateway.If the mobile phone Bluetooth configure is used, the sensor has no remote monitoring or linkage function.If the mobile phone is directly connected, some Android phones need to turn on the GPS function (low-power Bluetooth is included in the GPS function)

About Update Frequency:

1. The sensor uses a trigger mechanism. When the temperature or humidity changes to the set value, the sensor will report the data immediately. Generally, the data is updated once an hour.

2. The sensor cannot set the update report data frequency.

3. The sensor cannot set alarm. The alarm function is set on the APP.

NOTE:This function requires Tuya Bluetooth Gateway or Tuya Multi-Mode Gateway supported.

Error on temperature and humidity:

1. All temperature and humidity sensors will have certain errors, please note. The temperature error of this sensor is ± 1 ℃, and the humidity error is ± 5% RH. Any value within this range is normal.

2. The sensor error and manufacturing process will meet, and there will also be some errors between products of the same model.

3. According to Newton's third law, heat conduction takes a certain time. The sensor needs 30 minutes or 1 hour to be consistent with the room temperature, and the measurement will be accurate.

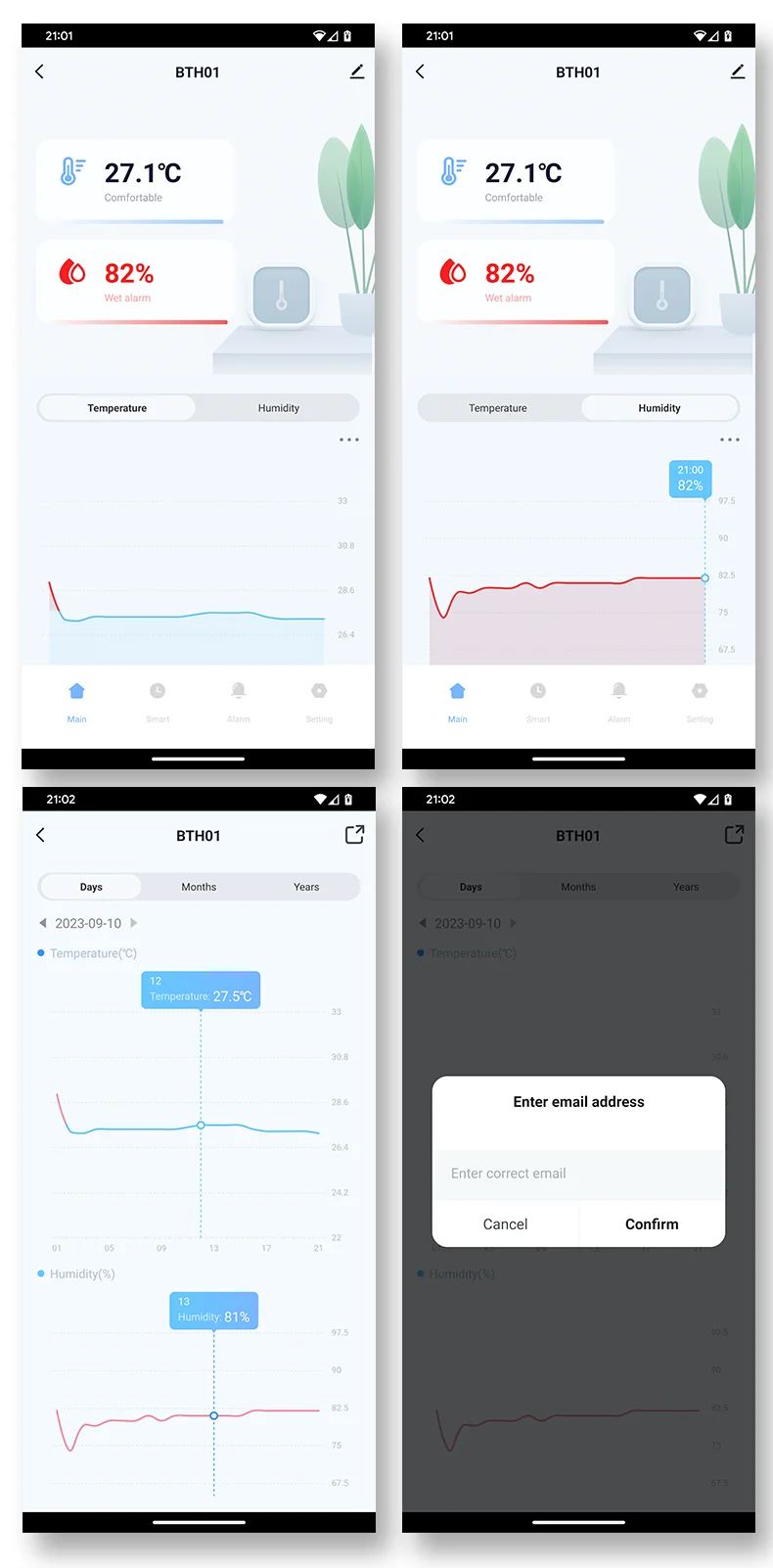

Historical curve of temperature and humidity:

1. The minimum granularity of historical data (daily chart) is 1 hour, and the minimum granularity of exported data is also 1 hour.

2. Days of historical data are stored for 7 days.3. The value of historical data is the average value. That is, the average value of a minimum granularity time.

Support for third-party smart speakers:

1. Because the third-party smart speakers (Google Home/Amazon Alexa) do not have control panels corresponding to temperature and humidity sensors,Therefore, the APP of third-party smart speakers may not display the temperature and humidity correctly.But we have developed voice query function. Therefore, the current temperature and humidity can be queried by voice.

2. Route or automatic process related to temperature and humidity cannot be established on the third-party smart speakers.

3. The device does not support Yandex Alice.

NOTE:This function requires Tuya Bluetooth Gateway or Tuya Multi-Mode Gateway supported.

Trigger mechanism of temperature and humidity in automatic process:

We used Edge Triggered (ET)That is, the action can only be triggered if the condition crosses the set condition.

A: For example, turn on the light when the automatic setting temperature is greater than 25 ℃.A.

1. When the temperature rises from below 25 ℃ to 25 ℃, the automatic process can trigger the ON light.A.

2. After the automatic process is set, the temperature is always above 25 ℃, and the lamp is not turned on.

B: For example, when the automatic setting temperature is less than 20 ℃, turn on the light.B.

1. When the temperature drops from above 20 ℃ to 20 ℃, the automatic process can trigger the start lamp.B.

2. After the automatic process is set, the temperature is always below 20 ℃, and the lamp is not turned on.

NOTE:This function requires Tuya Bluetooth Gateway or Tuya Multi-Mode Gateway supported.

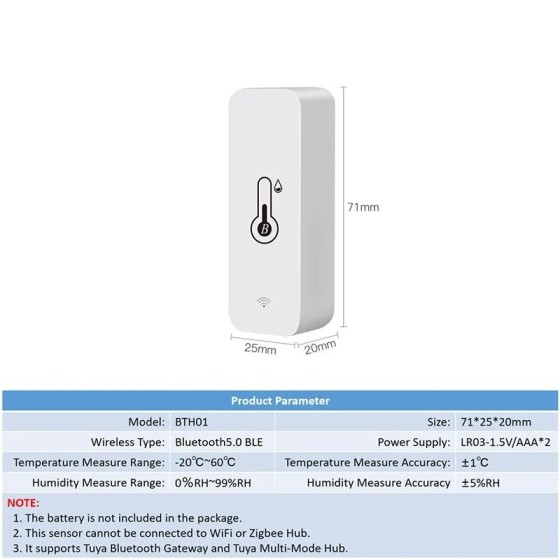

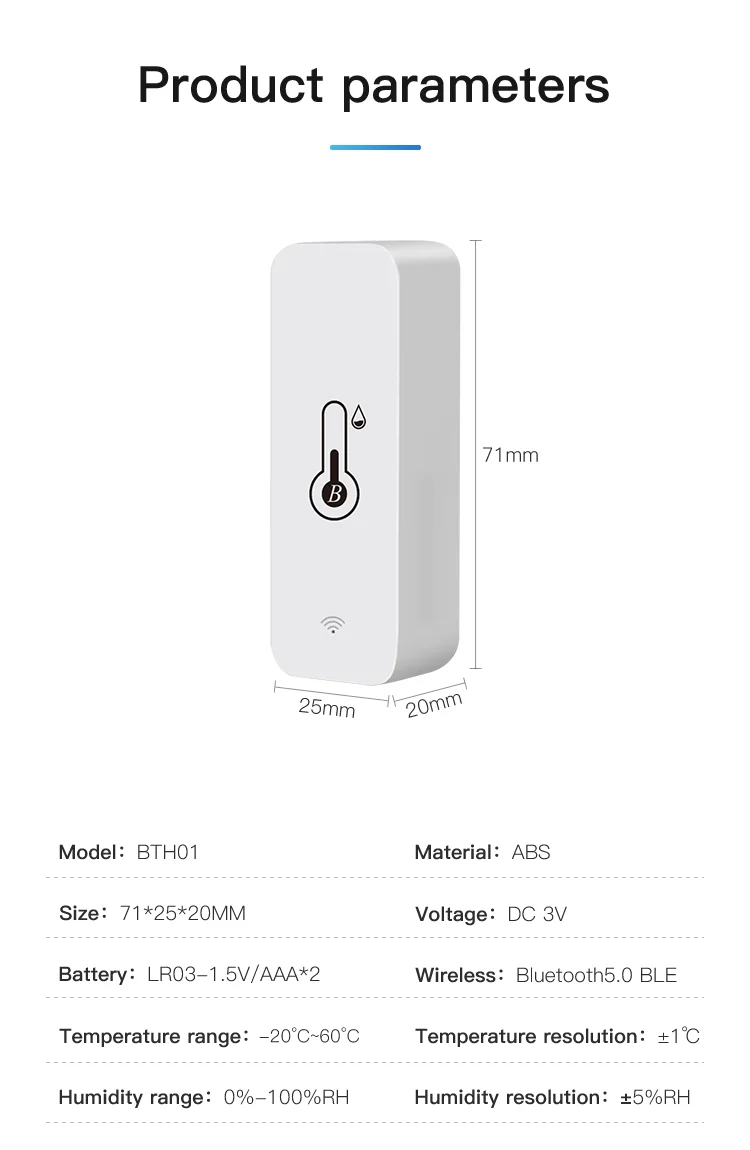

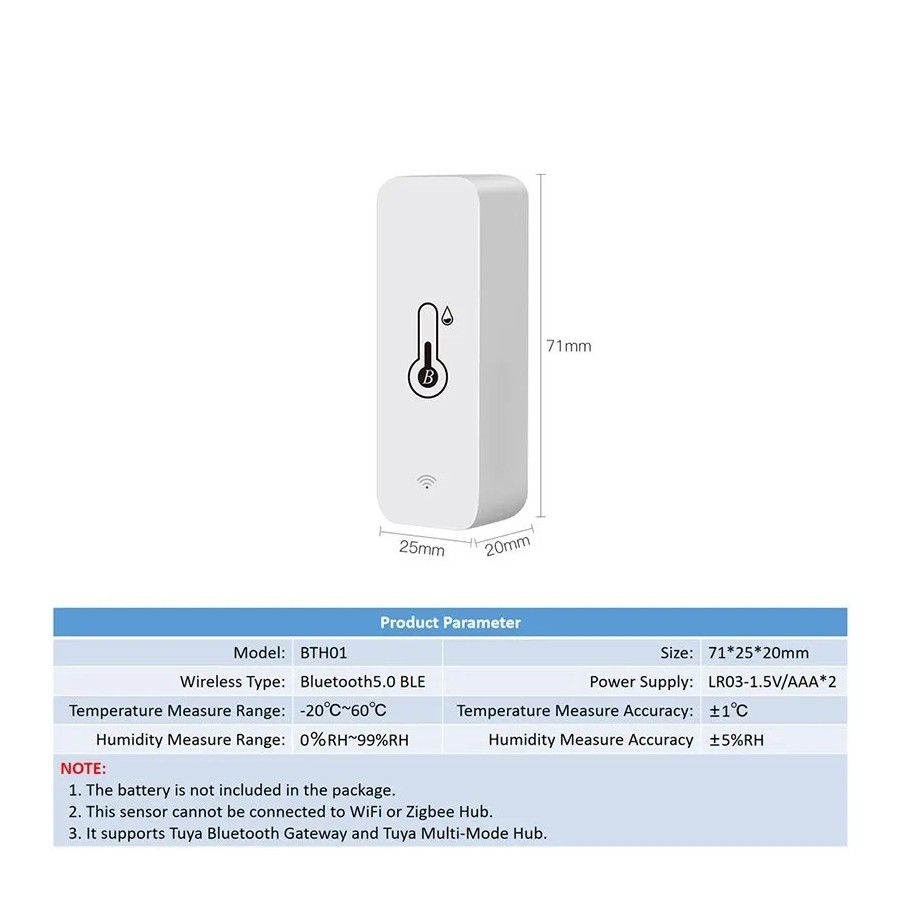

Product Parameter:

* Power Supply: LR03-1.5V/AAA*2(not included)

* Wireless Type:Bluetooth 5.0 BLE

* Temperature Measure Range: -9.9℃-60℃

* Temperature Accuracy: ± 1 ℃

* Humidity Measure Range: 0% RH~99% RH

* Humidity Accuracy: ±5% RH

What is in package

1. Sensor *1

2. Double sided adhesive installation kit*1

3. English instruction manual *1

NOTE: No battery, no screw installation kit
